Paint Mechanics System

My RoleSole Programmer

Software & Languages UsedC++, Unreal Engine 5, Unreal Blueprints, JetBrains Rider

Overview

Context

This project was a solo developed university assignment, across 8 weeks to create a Testing Environment for a Series of mechanics in C++, while also making it designer friendly & scalable

Bouncy green paint effect on player

Related:

A first-person t training course traversed via paint, (paint gun) , the player is not able to use mechanics manually only through the paint. Due to time constraints, I focused on the core systems, making them designer friendly & efficient.

This Testing Environment features a series of systems

• Paint Ability System ( Green,blue,Red,Orange,Purple) , modifying player movment and interact with special surfaces ( jump,speed boost, phasing, destructable,manual jump).
• Projectile + Collider management systems, using design patterns such as object pooling and spatial partioning
• Data-driven content (Type Object / Data Assets), pickups / collectibles, input actions, paint gun. Making it easy to change specific values or switch out meshes and even change the entire ability setup. Just by switching out the data assets in the blueprints there is no integration issues.
• UI systems handled through UMG, via a general HUD class, allowing for easy additions to be made to the players main UI
• Traversal & interaction Systems (dash and turret button press)
• A project-wide focus on C++ decoupling and modularity, making extensive use of interfaces, Delegates, actor component, and BlueprintImplementableEvents for easy extension and customisation in blueprints

Highlights

Core loop: pick a paint type → shoot surfaces → the environment + player movement changes → use that change to reach the next Checkpoint / interaction.

Paint powers (what each one does)

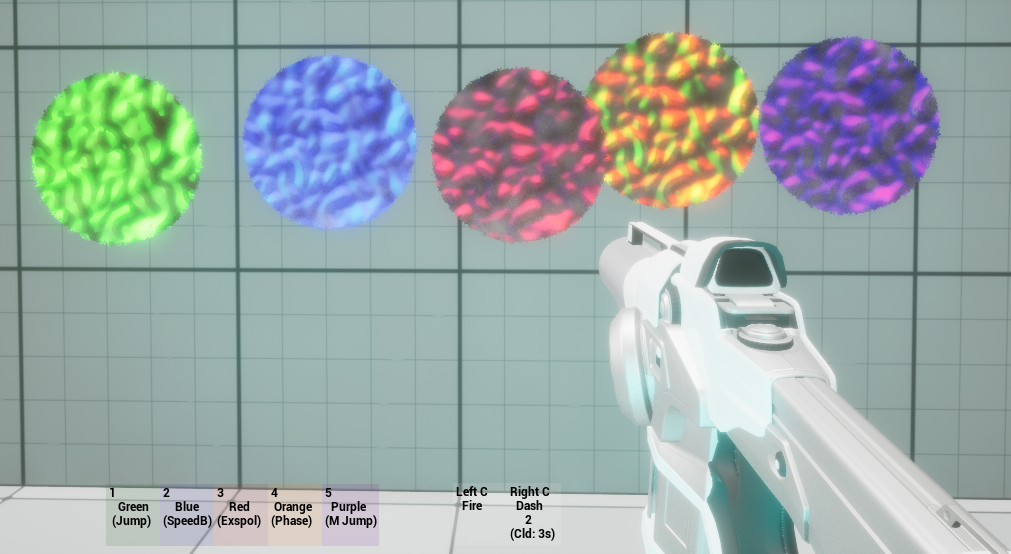

True colour of the paints

• Green: enables bounce / wall-jump style traversal on eligible surfaces (changes movement options and routing).

Green paint : wall jump traversal (movement is driven by surface normal state, not manual ability buttons).

• Blue: speed-focused movement modifier for fast traversal lines.
• Red: destructible interaction (breakable surfaces / obstacles are driven by the paint state).
• Orange: phasing interaction for phaseable walls/geometry.
• Purple: manual jump / vertical option when the level wants controlled height gain (useful for “gated” jumps).

---

Purple paint: 1 Manual jump charge given to player, as well as minor jump boost from paint surface.

How paint becomes gameplay

• Each paint colour maps to an EPaintType and is handled via a polymorphic effect layer (UPaintEffect base + derived classes like UBluePaintEffect, UGreenPaintEffect, UPurplePaintEffect, UOrangePaintEffect, URedPaintEffect).
• The player owns a UPlayerPaintReactionComponent, which acts like an “effect manager”:
  • creates the correct UPaintEffect when entering paint,
  • tracks active paint types to prevent duplicates,
  • cleanly removes effects on exit (including small grace rules like “blue linger”).

Why this is scalable

• Adding a new paint type is mostly data + one new class:
  • add to EPaintType,
  • implement a new UPaintEffect subclass,
  • register it in PaintEffectClasses on UPlayerPaintReactionComponent.
• The gameplay code stays designer-friendly because most tuning values are exposed with UPROPERTY(EditDefaultsOnly) (multipliers, cooldowns, allowed behaviours, etc).


  // UPlayerPaintReactionComponent::OnEnterPaint (trimmed)
  if (ActiveEffects.Contains(PaintType))
  {
      return; // prevents stacking duplicates
  }

  UPaintEffect* NewEffect = CreateEffect(PaintType);
  if (NewEffect)
  {
      NewEffect->SetSurfaceNormal(FPaintSurfaceNormal);
      NewEffect->ApplyEffect(GetOwnerCharacter());

      ActiveEffects.Add(PaintType, NewEffect);
      ActiveEffectNormals.Add(PaintType, FPaintSurfaceNormal);
  }

Feedback & readability

• Paint type changes are reflected through surface visuals (materials/decals) and player response, so the player learns by doing/progressing.
• Abilities are surface-driven , so the surface in which a pain decal is applied determines whether it effects or helps the player

This project fires a lot of paint projectiles and creates a lot of short-lived “impact” logic, so I focused on performance patterns that keep gameplay smooth and predictable as the level gets larger.

Performance goals

• Avoid expensive Tick() logic where it isn’t needed (most actors/components use PrimaryActorTick.bCanEverTick = false).
• Prefer timers + events over per-frame polling (e.g. turret fire timers, delayed destruction in UHealthComponent).
• Keep systems loosely coupled (interfaces, data assets, subsystems) so features can be extended without rewriting core code.

Object Pooling (why it matters)

Object Pooling: paint/impact actors are reused instead of repeatedly spawning and destroying.

When you spawn and destroy lots of actors every second, you can cause small stutters (allocation + cleanup overhead).

• To avoid that, I used object pooling: actors are created upfront, then “checked out”, reset, and reused.
• I used a reusable pool via APaintPool, returning either:
  • an inactive decal from AvailableDecals, or
  • recycling the oldest one from ActiveDecals if the pool is exhausted.


// APaintPool::GetDecalActorFromPool (trimmed)
APaintDecalActor* Decal = nullptr;

if (AvailableDecals.Num() > 0)
{
    Decal = AvailableDecals[0];
    AvailableDecals.RemoveAt(0);
}
else if (ActiveDecals.Num() > 0)
{
    Decal = ActiveDecals[0];
    ActiveDecals.RemoveAt(0);
    Decal->ResetForUse(); // clean state before reuse
}

if (Decal)
{
    Decal->SetActorHiddenInGame(false);
    Decal->SetActorEnableCollision(true);
    ActiveDecals.Add(Decal);
}

---

Spatial Partitioning (explained simply)

Spatial Partitioning / Collider merging: The world is split into **small regions (cells)** so systems only process what’s relevant nearby.

In my case, this is used to keep paint surface collision manageable:

• Without partitioning, lots of painted areas can build up and collision/overlap checks can become “everything vs everything”.
• With partitioning, paint data is stored/processed per cell, so when something needs to query paint, it only checks the local cell(s) around it.
• So APaintZoneManager partitions decals into grid cells (FIntPoint) + EPaintType, meaning logic can reason about the “local” paint zones.
  • This keeps zone tracking scalable and gives a foundation for optimisations like “merge colliders when dense


// APaintZoneManager::RegisterDecal
// Goal: avoid tracking decals in one global list by bucketing into grid-cell + paint-type zones.
void APaintZoneManager::RegisterDecal(APaintDecalActor* Decal)
{
    if (!Decal) return;

    const FIntPoint Cell = WorldToGrid(Decal->GetActorLocation());
    const EPaintType Type = Decal->PaintType;

    // Key is unique per cell + paint type, so zones stay local + predictable
    UPaintZone* Zone = GetOrCreateZone(Cell, Type);
    if (Zone)
    {
        Zone->AddDecal(Decal); // zone can later decide when to merge colliders, etc.
    }ActiveDecals.Add(Decal);
}


// APaintZoneManager::GetOrCreateZone + RegisterDecal
UPaintZone* APaintZoneManager::GetOrCreateZone(FIntPoint Cell, EPaintType Type)
{
    const FString Key = GetZoneKey(Cell, Type);

    if (UPaintZone** Existing = Zones.Find(Key))
        return *Existing;

    UPaintZone* NewZone = NewObject<UPaintZone>(this);
    NewZone->Initialize(Type, GetWorld());
    NewZone->SetGridCell(Cell);

    Zones.Add(Key, NewZone);
    return NewZone;
}

The result is a system that scales better as the player paints more of the level.

Weapon architecture (template-style structure)

I used a base weapon class (AWeaponBase) (shared firing / input / equip logic(e.g HandleFire,CnaFire(),Fire())) and then a specialised weapon implementation class for the APaintGun.


// AWeaponBase::Fire (trimmed)
// Template Method: this high-level flow stays the same for all weapons.
void AWeaponBase::Fire()
{
    if (!CanFire())
        return;

    HandleFire();               // <- variation point (derived weapons override)
    OnWeaponFired.Broadcast();  // <- stable post-fire event (UI/VFX/audio can hook in)
}

// Default rule: only fires when equipped + has valid data
bool AWeaponBase::CanFire() const
{
    return bIsEquipped && WeaponData != nullptr;
}


// APaintGun overrides only what changes, reusing the base Fire() pipeline.
bool APaintGun::CanFire() const
{
    return Super::CanFire() && CurrentPaintType != EPaintType::None;
}

void APaintGun::HandleFire()
{
    // Paint weapon uses trace + pooled decals instead of spawning a normal projectile.
    // (Implementation detail: TracePaintHit -> pool.GetDecalActorFromPool -> SetPaintColor)
}

This structure makes it easy to add future weapons (or alternate paint tools) without duplicating core weapon code — the shared behaviour stays in the base class, while each weapon overrides only what it needs (projectile type, fire behaviour, cooldown rules, UI hooks).

• UTurretWorldManager is a UWorldSubsystem that tracks turrets using TWeakObjectPtr to avoid hard ownership and to stay safe if actors are destroyed.

• Data-driven configuration via UWeaponDataAsset, UCollectibleData, UPickupData and TSubclassOf<> keeps balancing/tuning out of code and reduces iteration cost.

• Interaction is decoupled through IInteractableInterface + UInteractableComponent so interactive actors don’t depend on a specific player class

Making C++ systems “designer-owned”

Mainly done through:

• Data Assets (data-driven configuration)
• BlueprintAssignable events (Blueprint hooks into C++ lifecycle)
• BlueprintImplementableEvent (BP extends behaviour without subclassing C++)
• Reusable Actor Components (attach behaviour to any actor)

---

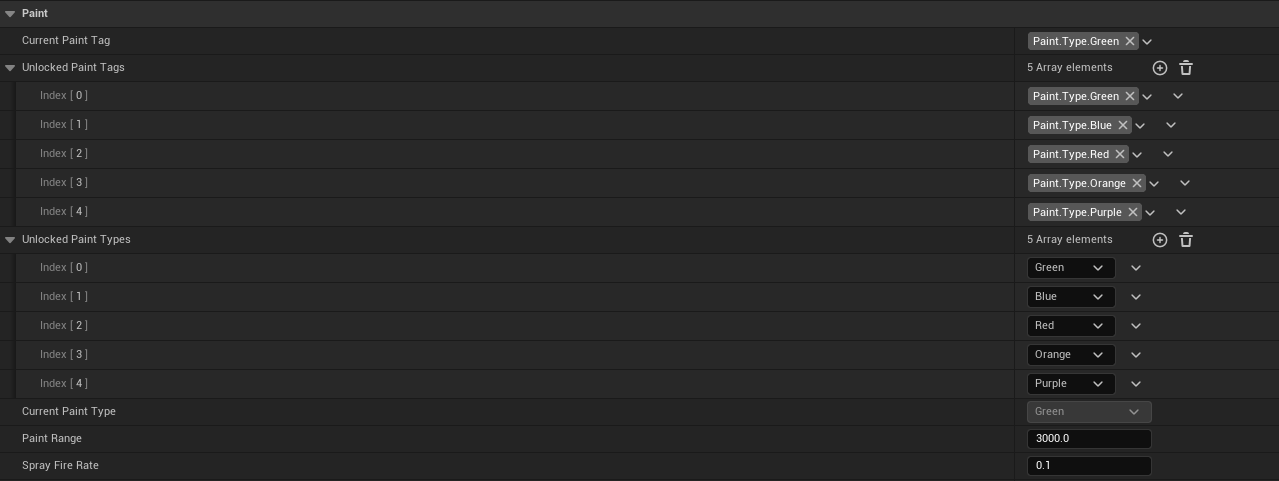

Paint Gun — designer tuning without touching code

The paint gun is written in C++ (APaintGun), but most gameplay tuning is editor-driven:

• unlocked paint tags/types
• materials/VFX references
• fire rates, range, pool size, cooldowns, limits

HOVER OVER IMAGE AREA TO ZOOM IN

Related:

// APaintGun.h (trimmed)
UPROPERTY(EditDefaultsOnly, BlueprintReadWrite, Category="Paint")
float PaintRange = 3000.0f;

UPROPERTY(EditDefaultsOnly, Category="Paint")
float SprayFireRate = 0.1f;

UPROPERTY(EditAnywhere, BlueprintReadWrite, Category="Paint|Pool")
TSubclassOf<APaintDecalActor> PaintDecalClass;

UPROPERTY(EditAnywhere, BlueprintReadWrite, Category="Paint|Pool")
int32 PoolSize = 200;

---

Data Assets

Data Assets , create new ones which inherit from base C++ classes and plug an play in to other blueprints

• UCollectibleData → mesh, points, type, pickup SFX
• UPickupData → type, value, mesh, glow, weapon class/data
• UWeaponDataAsset → projectile, mesh, fire rate, damage

---

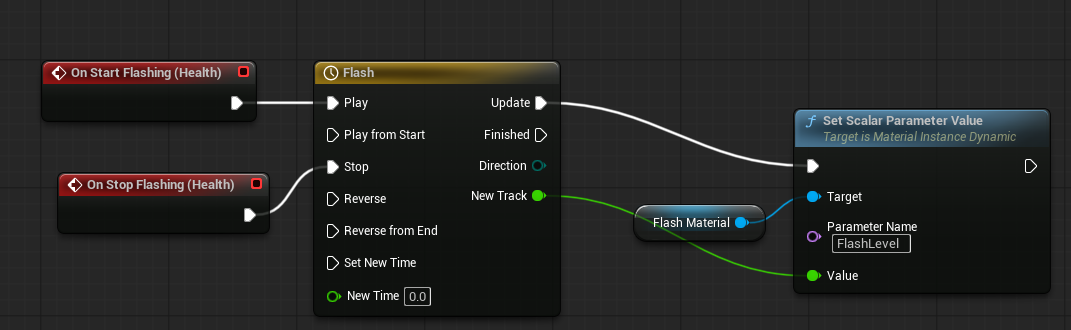

Health Compoent + Destructable Wall

C++ events used to handle flash upon damage taken

Related:

// UHealthComponent.h (trimmed)
DECLARE_DYNAMIC_MULTICAST_DELEGATE_OneParam(FOnHealthChanged, float, Health);
DECLARE_DYNAMIC_MULTICAST_DELEGATE(FOnStartFlashing);
DECLARE_DYNAMIC_MULTICAST_DELEGATE(FOnStopFlashing);

UPROPERTY(BlueprintCallable, Category="Health")
FOnHealthChanged OnHealthChanged;

UPROPERTY(BlueprintAssignable, Category="Destruction")
FOnStartFlashing OnStartFlashing;

UPROPERTY(BlueprintAssignable, Category="Destruction")
FOnStopFlashing OnStopFlashing;

---

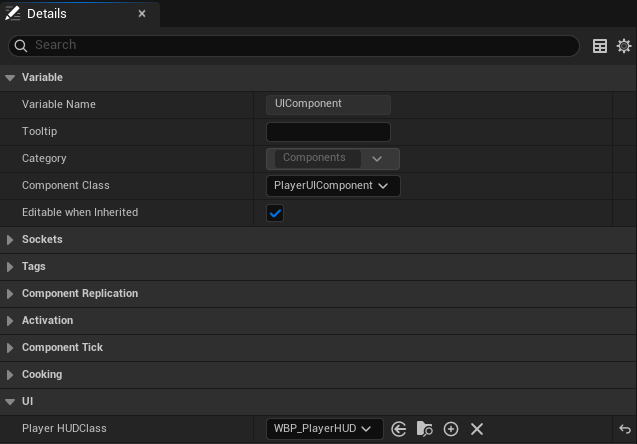

Player HUD

How easy it is to change the players UI , simply choose another HUD bluepritn made and select.

---

General

Checkpoint

Checkpoint which sets the players spawn point , logged upon enter , events broadcasted

How it works (technical):

• ACheckpoint is a specialised ABaseInteractable that triggers via overlap.
• It broadcasts OnCheckpointReached(Index, this) which ATrainingCourseGameMode listens to (so the checkpoint doesn’t need to know about GameMode logic).
• ActivateCheckpoint() handles feedback (Niagara + sound) and prevents re-trigger spam.

// ACheckpoint::OnPlayerEnterInteractionZone (trimmed)
if (ATrainingCoursePlayerCharacter* Player = Cast<ATrainingCoursePlayerCharacter>(OtherActor))
{
    if (!bIsCurrentCheckpoint)
    {
        OnCheckpointReached.Broadcast(CheckpointIndex, this); // notify GameMode
        IInteractableInterface::Execute_Interact(this, Player); // optional interaction hook
    }
}

// ACheckpoint::ActivateCheckpoint (trimmed)
bIsCurrentCheckpoint = true;
PlayEffectOnActivation(); // Niagara
UGameplayStatics::PlaySoundAtLocation(this, CheckpointSound, GetActorLocation());

---

Turret Button

How it works

• ATurretButton toggles state when interacted with.
• It talks to a UWorldSubsystem (UTurretWorldManager) which tracks turrets and can enable/disable them as a group. -Turrets register/unregister themselves on BeginPlay/EndPlay (no manual wiring per level).

Turret button enable

Related:

// ATurretButton::OnButtonPressed_Implementation (trimmed)
if (UTurretWorldManager* WM = GetWorld()->GetSubsystem<UTurretWorldManager>())
{
    const bool bEnable = !bIsPressed;      // pressed state is handled in base button
    WM->SetAllTurretsActive(bEnable);      // global fan-out
}

// UTurretWorldManager::SetAllTurretsActive (trimmed)
for (TWeakObjectPtr<ABaseTurret> Turret : ActiveTurrets)
{
    if (Turret.IsValid())
    {
              Turret->SetTurretActive(bActive); // starts/stops fire timer
    }
}

---

Collectibles

How it works

• Each collectible references a UCollectibleData DataAsset (mesh, points, sound).
• On overlap, the collectible finds the active UCollectibleGameRule on the GameMode and broadcasts points.
• GameMode binds to rule delegates at BeginPlay and updates ATrainingCoursePlayerState.

Collectible

// ADataDrivenBaseCollectible::OnPlayerEnterInteractionZone (trimmed)
if (CollectibleData->PickupSound)
{
    UGameplayStatics::PlaySoundAtLocation(this, CollectibleData->PickupSound, GetActorLocation());
}

if (ATrainingCourseGameMode* GM = Cast<ATrainingCourseGameMode>(UGameplayStatics::GetGameMode(this)))
{
    if (UCollectibleGameRule* Rule = GM->FindComponentByClass<UCollectibleGameRule>())
    {
                Rule->BroadcastPoints(PC, CollectibleData->Points); // decoupled scoring
    }
}

Destroy();

---

Health Pick up

Why this is scaleable

• Pickups don’t need to know “player class details” — they just look for a UHealthComponent.

Health Pickup

IIAInterface

• Input Action interface

InteractableInterface

• Provides base interaction , something simple as opening a door , add this interface to the class and when player presses 'E' whaever is in the doors interact impelmentation will be called, player doesnt even have to knwo what it is just checking if it has the interface

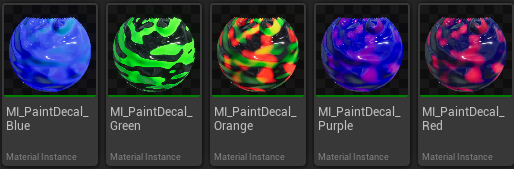

Paint Decal Materials

All 5 Paint Materials

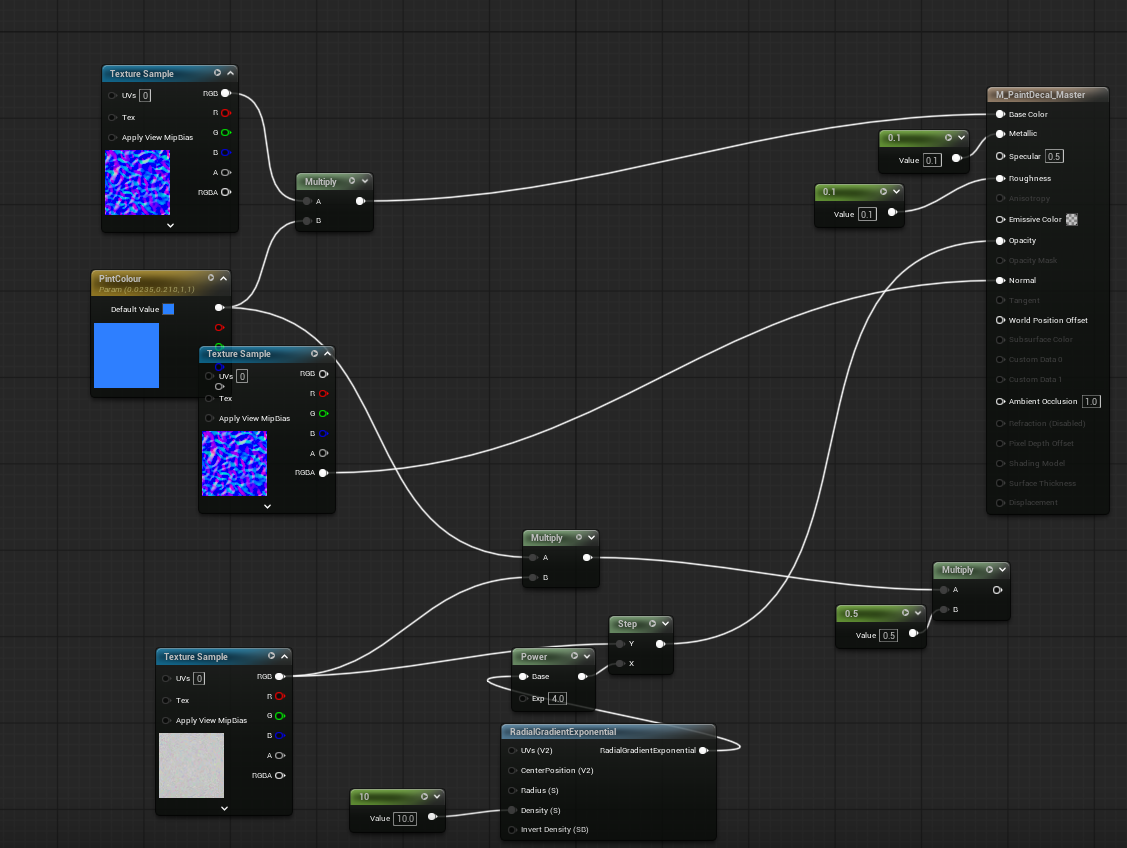

Node layout of the Master Material

VFX

Destructable Wall Flash

Checkpoint Upwards particle burst to visually communicate to the player they habe entered / set the checkpoint

---

Collectible

Video game coin collection sound

---

Checkpoint

Checkpoint subtle wavy paino like audio

---

Jump (Same for purple & manual jump)

Bouncy green paint effect on player

---

turret & Turret Button

Button interact sound & Turret firing sound

Lessons Learned

This project reinforced how important it is to balance scope vs. polish. The core mechanics (paint effects, object pooling, modular components, UI feedback) came together quickly, but I learned that traversal/puzzle gameplay lives or dies on iteration - clear visual communication, consistent rules, and repeated playtesting + tuning often take longer than implementing the mechanics themselves.

My biggest technical takeaway was the value of building for extension early. By structuring paint behaviour as data-driven effects + reusable components (rather than hardcoding per-actor logic), I ended up with systems that are easy to scale: new paint types, surface rules, interactables, or reactions can be added by creating a new class/data asset and wiring it up, without rewriting the existing gameplay loop.
